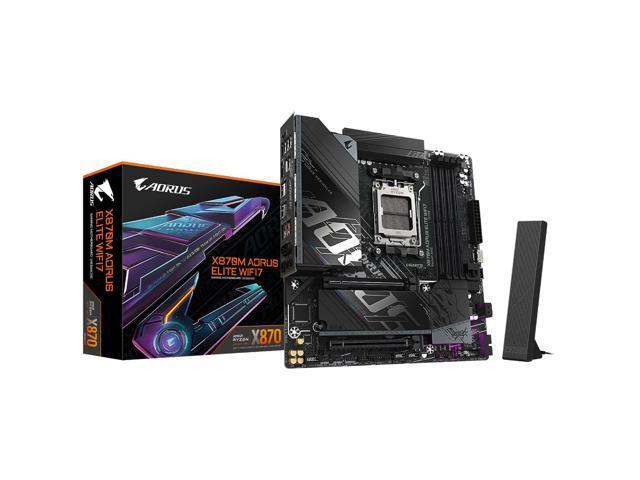

Gigabyte X870M AORUS ELITE WIFI7: AM5, DDR5, Micro ATX, Wi-Fi 7

5.00 (1)
Best price today
$289
Best
newegg_com
5.00 (1)
In stock
$289
Prices last updated Jun 25, 2026

Highlights

  • AMD Socket AM5 supports Ryzen 9000, 8000, and 7000 Series processors

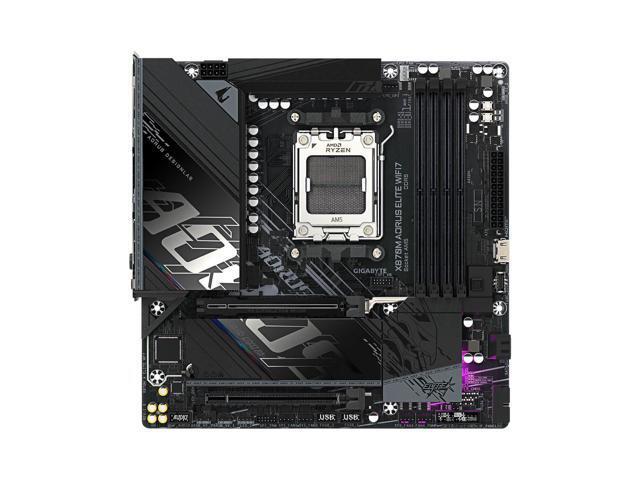

  • Micro ATX layout with digital twin 14+2+2 phases VRM solution
  • Four DDR5 DIMM slots with AMD EXPO support and overclocking up to 8200MT/s
  • PCIe 5.0 x16 slot with reinforced PCIe UD Slot X design
  • Two M.2 slots, including one PCIe 5.0 x4 connection for high-speed storage

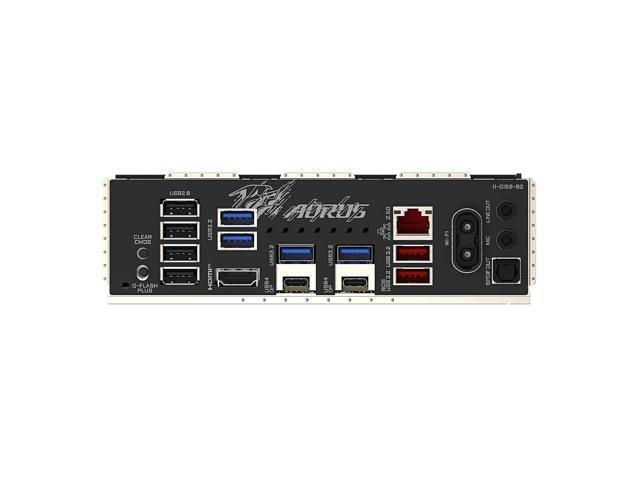

  • Dual USB4 Type-C with DisplayPort Alt Mode, plus HDMI output
  • 2.5GbE LAN and Wi-Fi 7 for fast wired and wireless networking
  • EZ-Latch and EZ-Latch Click designs for tool-free PCIe, M.2, and heatsink installation

Description

The Gigabyte X870M AORUS ELITE WIFI7 is a Micro ATX motherboard built for AMD Socket AM5, supporting Ryzen 9000, 8000, and 7000 Series processors. It combines a digital twin 14+2+2 phases VRM design with DDR5 support across four DIMM slots and memory overclocking up to 8200MT/s, including AMD EXPO support. For expansion and storage, it offers a PCIe 5.0 x16 slot, two M.2 slots with one PCIe 5.0 x4 connection, and tool-free EZ-Latch designs for easier installation. Dual USB4 Type-C, HDMI, 2.5GbE LAN, and Wi-Fi 7 provide strong connectivity for gaming and high-speed desktop builds.

Specifications

Brand Name GIGABYTE
Brand Gigabyte
Category motherboard
Model Family X870M AORUS ELITE WIFI7
Condition New
